Shenzhen H&S Innovation Technology Co., Ltd howard@hscxled.com 86-134-2892-1577
Détails du produit
Lieu d'origine: Shenzhen, Chine
Nom de marque: HSCXLED
Certification: KC CE CE-LVD CE-EMC ROHS FCC CCC ISO9001
Numéro de modèle: P1.9/P2.6/P3.9
Conditions de paiement et d'expédition

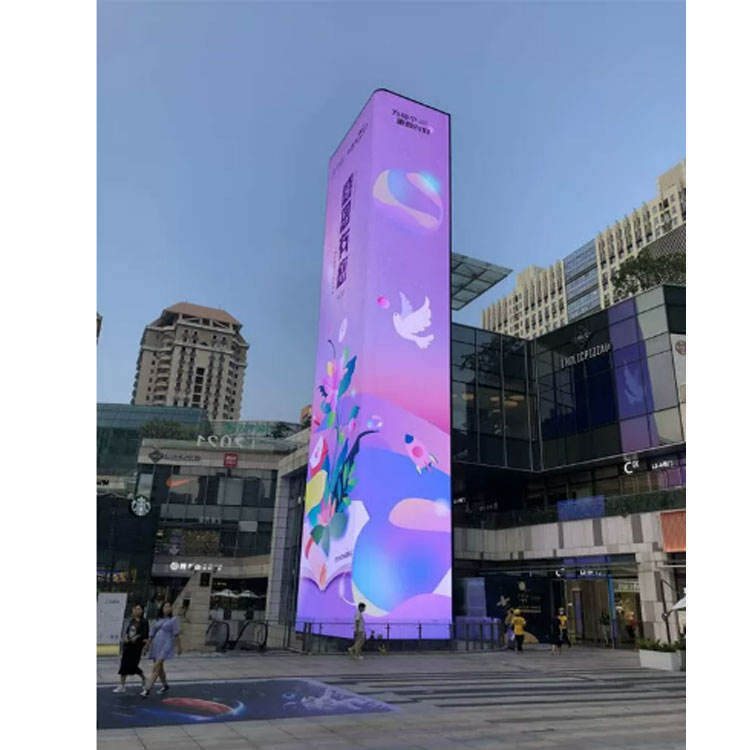

The outdoor right angle LED display is a high-performance, multi-functional and creative outdoor display device. It not only solves the problem of limited outdoor display space but also breaks the visual limitations of traditional displays, bringing more possibilities for outdoor visual communication. With the continuous development of digital technology, outdoor right angle LED display will play a more important role in urban construction, commercial promotion and public services, creating greater value for users and society.
![]()
outdoor right angle LED display Specification:
| outdoor right angle led display | |||||
| Pixel Pitch | 1.95mm | 2.5mm | 2.6mm | 2.976mm | 3.91mm |
| Led Module Size | 250 x 250mm | 250 x 250mm | 250 x 250mm | 250 x 250mm | 250 x 250mm |
| LED Configuration | SMD 3-in-1(1R1G1B) | SMD 3-in-1(1R1G1B) | SMD 3-in-1(1R1G1B) | SMD 3-in-1(1R1G1B) | SMD 3-in-1(1R1G1B) |
| Drive Method | 1/32 Scan | 1/25 Scan | 1/32 Scan | 1/28 Scan | 1/16 Scan |
| Best Viewing Distance | ≥2m | ≥2.5m | ≥2.6m | ≥3m | ≥4m |
| Cabinet size | 500 x 500mm or customized | ||||
| Cabinet material | Iron/ Dia-aluminium | ||||
| Led display size | Support customization according to needs | ||||
| Refresh Rate | 3840Hz/7680Hz | ||||
| Brightness | 5000nits | ||||
| Grey Scale | 14-16bit | ||||
| Viewing Angle | 140°/140°(H/V) | ||||
| power supply | AC110V/220V-5V60A | ||||
| Max Power Consumption | 260W/㎡/800W/㎡ | ||||
| Working Temperature | -20℃~+60℃ | ||||
| IP Rate | IP65 | ||||
| Display Function | Video/Text/Picture/Time/3D Text/Office/SWF | ||||
| Control mode | LAN/Wifi/3G/4G (Optional)Synchronous/Asynchronous/4G Wireles | ||||
| Life Span | 100,000 hours | ||||
