Front Open LED Display Screen

Front Service Outdoor Video Wall LED Screen

This is a full-color outdoor front-service LED video wall screen specially engineered for outdoor fixed installation advertising and format LED video wall, named Front Open LED Display Screen, available in multiple pixel pitches including P2.5, P3, P4, for customized splicing size.

Front Maintenance Led Display Highlights:

Screen size support Customization.

Effective Information dissemination -- Text, video, graphic, and image programs available. -- Two sides screen can be played different contents at the same time as required.

Auto adjustable brightness -- Display Performance offer you perfect vision experience.

Maintenance Method -- Front service module with screws, easy to operate.

Smart Control -- WiFI, USB, 3G, 4G, broadcast all programs in real-time or synchronized.

Mainly Hanging Installation, wall mounted installation is more suitable for single front open.

Front Open LED Display Screen Paramenters:

Outdoor fixed LED screen features:

Higher Refresh Rate

The refresh rate is up to 4K Hz. The LED screen displays smooth and stable videos and images without flicker and ghosting.High refresh rate up to 3840Hz, high contrast ratio up to 8000:1~12000:1; supports 2K/4K/8K ultra HD video output with vivid, true-to-life color restoration.

Higher Gray Scale and Higher Contrast Ratio

The LED screen has better performance on displaying colors from dark to light and shows more colors' details.

Wider viewing angle

The LED screen has wider viewing angle. More audiences can watch messages, images, videos etc. on the LED display.Full SMD 1R1G1B three-in-one lamp bead configuration, wide horizontal & vertical viewing angle at 120°~140°, uniform color performance from all viewing directions.

Higher brightness and auto brightness

The outdoor LED screen has higher brightness so that it can be visible at daylight even facing to the sunlight. With auto brightness function, it will adjust brightness at nighttime to protect pedestrians and drivers and save energy.

High brightness ranging from 4000cd/㎡ up to 7500cd/㎡, sunlight-readable with optional auto brightness adjustment by built-in ambient light sensor to adapt day-night brightness shift.

Waterproof and dustproof

IP65 and IP67 protection,With high protection level and special raw material, the LED screen has great performance and adapt to a variety of installation environments.

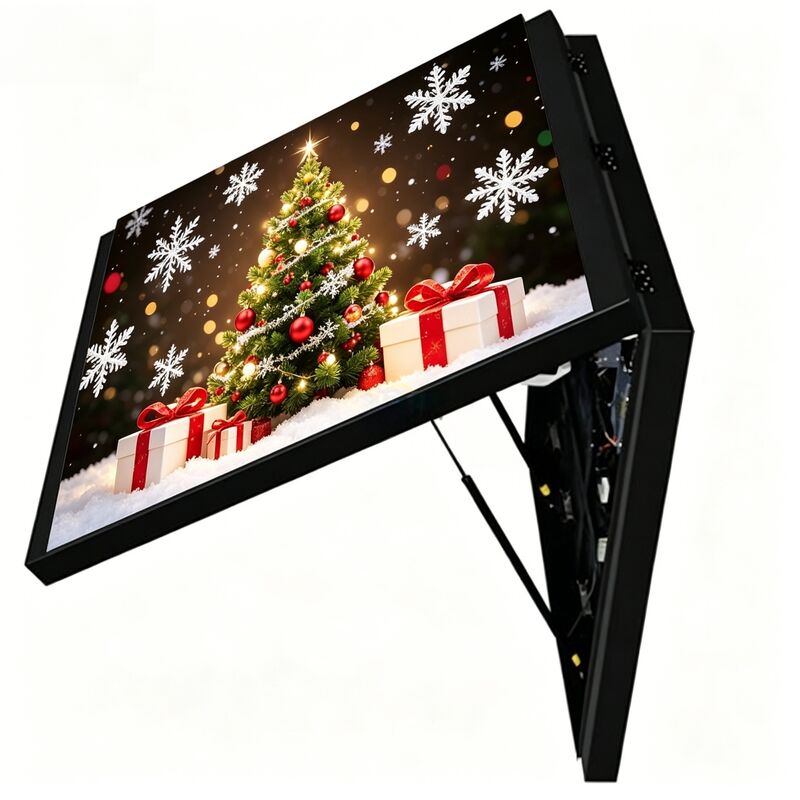

Front-access maintenance design:

All internal components including LED modules, power supply and receiving cards can be disassembled and replaced directly from the screen front side; no reserved rear maintenance space required, saving building space and construction cost for wall-mounted installation.
